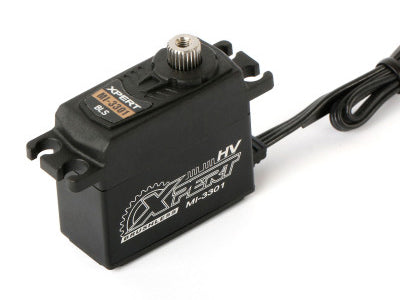

Xpert MI-3301-HV Mini Size Aluminum Servo

Xpert MI-3301-HV Mini Size Aluminum Servo

Features

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.

• Plastic upper and lower case with center aluminum design

• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.

• Light weight design

• All Aluminum case for the best thermal dissipation and durability.

• Strong Metal Gear

• Glitch-free

• Sophisticated error correction

• High-Speed, High-precision 12-bit AD converter and CPU calculation

• Fail safe

• Over current protection

• Over temperature protection

• Start sonorant

Specifications

• Power Supply: 6.0V~8.4V
• Speed (sec/ 60°):
• @6.0V: .083sec/60°
• @8.4V: .06 sec/60°
• Torque (oz/in):
• @6.0V: 141.85 oz-in
• @8.4V: 198.48 oz-in
• Torque (kg/cm):
• @6.0V: 10.21 kg-cm
• @8.4V: 14.29 kg-cm
• Dimensions: 33.6x15x29.5mm
• Weight: 37.5g
• Frequency: 200/333 Hz
• Range: 50~400 Hz
• Center Position: 1520 us
• Applications: 1/12 Surface, Airplane Aileron
