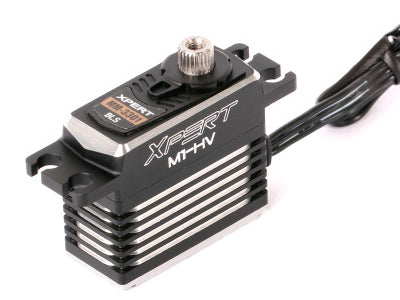

Xpert MM-3301-HV M1 Mini Size Full Aluminum Servo

Xpert MM-3301-HV M1 Mini Size Full Aluminum Servo

Features:

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• Light weight design
• All Aluminum case for the best thermal dissipation and durability.
• Strong Metal Gear
• Glitch-free
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant
• Operating frequency up to 333Hz

• Dimensions: 33.6x15x29.5mm
• Weight: 40.5 g
• Speed:
• @6.0V: .084 sec/60
• @7.4V: .068 sec/60
• @8.4V: .06 sec/60
• Torque:
• @6.0V: 141.85 oz-in (21.43 kg-cm)
• @7.4V: 174.89 oz-in (26.43 kg-cm)
• @8.4V: 198.48 oz-in (30.00 kg-cm)

Applications:

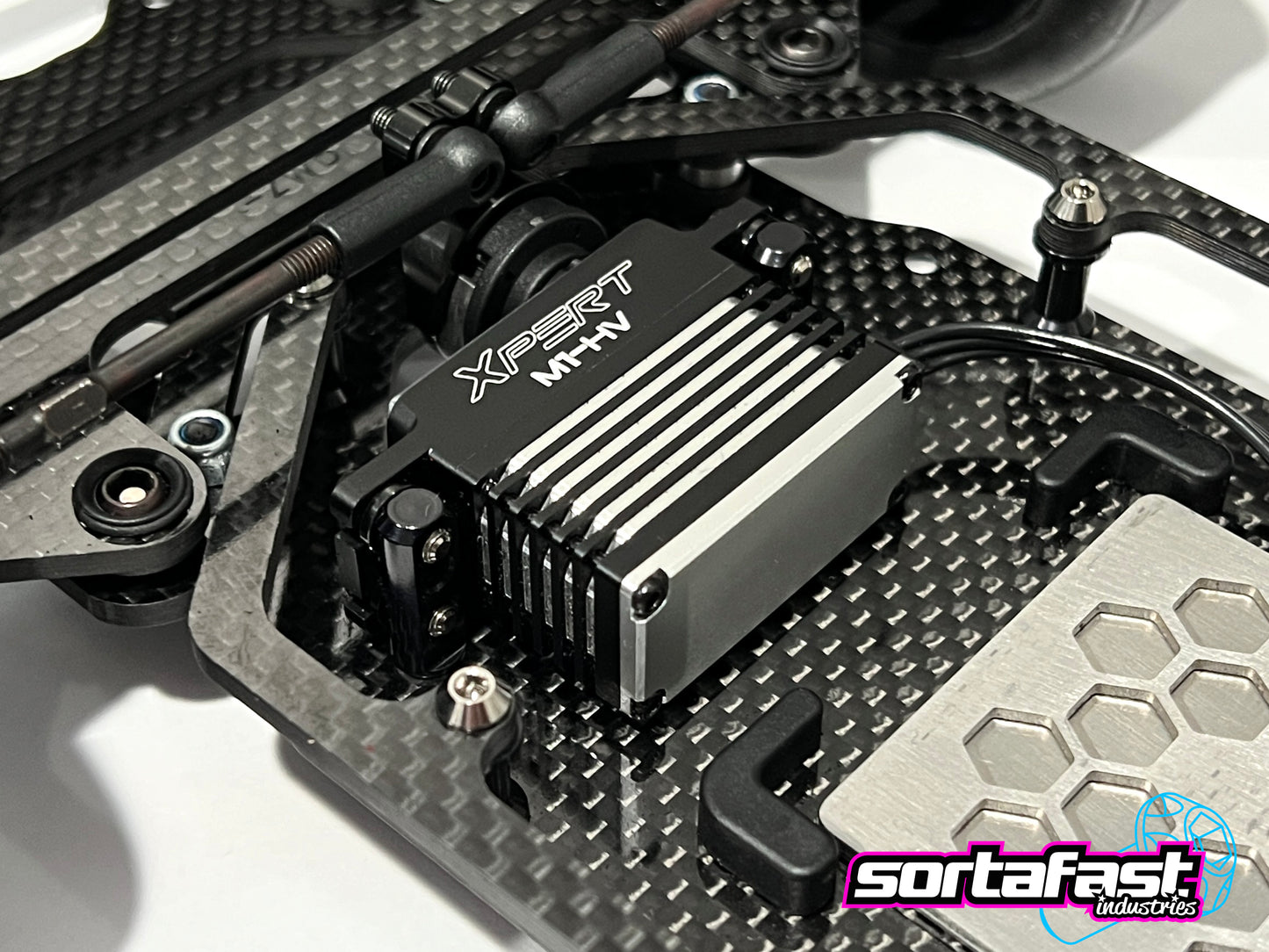

• Larger 1/12 Pan Car - 1/10th Pan car - Heli
